Name:GW0106C Mini Underwater Camera

The Mini GW0106C Underwater Camera with small size, convenient to carry; the use of 304 stainless steel, long-term working under water does not rust; glass is made of glass, special tempered under water pressure resistant; with 8 bright LED, good vision effect, underwater image clarity; partial color, small power consumption, camera power in 1 W.

Length: 20,30 meters and 60 meters optional

Image sensor: 1/3 inch CMOS

Lens: 3.6mm HD 2000000

Total pixel: 720 (H) *480 (V)

Minimum illumination: 0.5 LUX (F1.25600K)

Horizontal resolution: 700 line

White balance mode: automatic tracking

White balance range: 3200-10000 K

SNR: 48dB (minimum) 52dB (max) (automatic gain off)

Electronic shutter: 1/50-1/100, 000

seconds continuous (PAL) /1/60-1/120000 (NTSC) and continuous

Video output: composite video signal output, 1.0VP-pat 750hm

Working temperature: - 20 degrees C to +50 degrees C

Working humidity: below 85%RH

A LED:8 diameter 5mm bright white LED lamp; LED photosensitive control, LED does not work during the day,night white

Power supply: DC 12V

Power consumption: 0.9W  Max

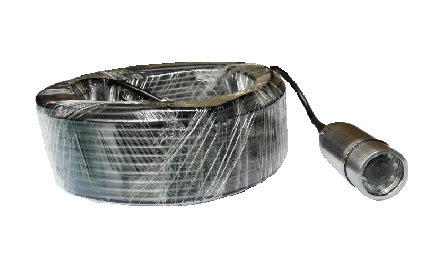

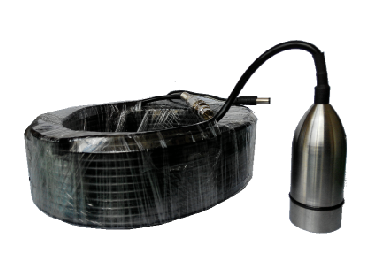

Product picture

Camera size
